Tube data info for ECC83

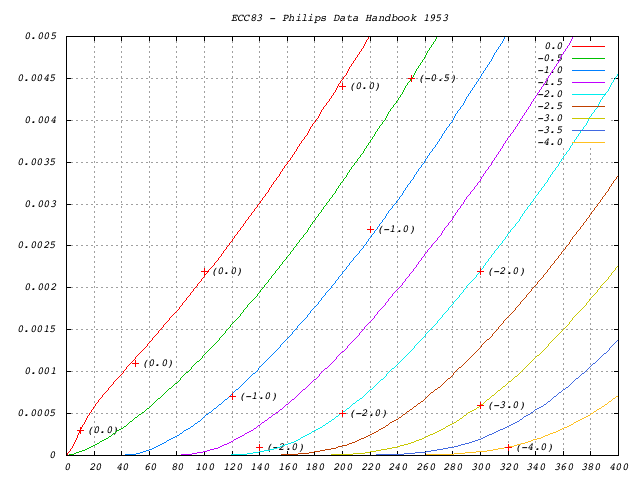

Va/Ia-curve for ECC83 generated by kurvmatch, displayed by gnuplot.

ECC83

This is the description file for ECC83.
#	$Id: ECC83.data,v 1.2 2014/01/02 00:45:48 ragge Exp $
#
name	"ECC83"
# alias 12AX7
Descr	"Philips Data Handbook 1953"
MU	100
VCT	0.5
# These are for SPICE code.
CCG	1.6	# Cathode-grid
CCP	.5	# Cathode-plate
CGP	1.7	# Grid-plate
RGI	2000	# Resistance for grid current (estimate)
#
# Parameters for gnuplot output
Plotx	0	20	400	# Plate 0-400V 20V incr
Ploty	0	.0005	.005	# Plate 0-5mA .5mA incr
Plotg	0	-0.5	-4	# Grid 0-(-4)V -0.5V incr
#
# Tube definition
Type	Triode
# Vp 	Vg	Ip
Triode param
10	0	0.0003
50	0	0.00115
100	0	0.00215
200	0	0.00445
250	-0.5	0.0045
120	-1	0.0007
220	-1	0.00265
140	-2	0.0001
200	-2	0.0005
300	-2	0.0022
300	-3	0.0006
320	-4	0.0001

ECC83 Spice code

*
* ECC83 code from Philips Data Handbook 1953 generated by kurvmatch
*
.SUBCKT ECC83 1 2 3
XZ1 1 2 3 Triode CCG=1.6P CGP=1.7P CCP=0.5P MU=99 EX=1.44 KG1=843 KP=762 KVB=216 RGI=2000
.ENDS
