Tube data info for ECC82

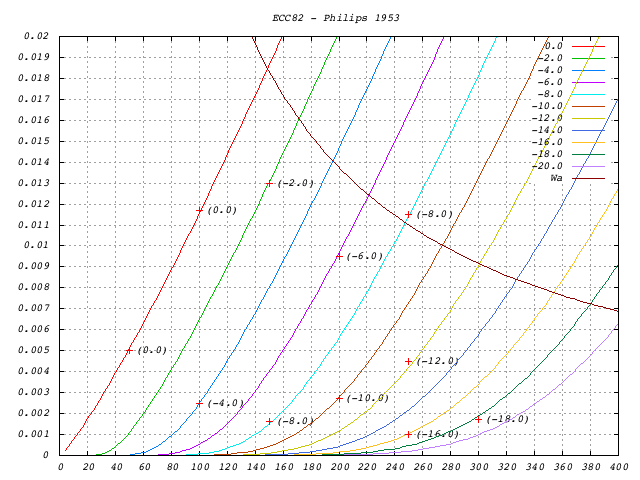

Va/Ia-curve for ECC82 generated by kurvmatch, displayed by gnuplot.
ECC82This is the description file for ECC82.# $Id: ECC82.data,v 1.2 2014/01/02 00:45:48 ragge Exp $ # name "ECC82" # alias 12AU7 Descr "Philips 1953" MU 18 VCT 0 # Contact potential (if known) # # These are for SPICE code. CCG 1.8 # Cathode-grid CCP .5 # Cathode-plate CGP 1.6 # Grid-plate RGI 2000 # Resistance for grid current (estimate) # # Parameters for gnuplot output Plotx 0 20 400 # Plate 0-400V 20V incr Ploty 0 .001 .020 # Plate 0-20mA 1mA incr Plotg 0 -2 -20 # Grid 0-(-20)V -2V incr Wa 2.75 # # Tube definition Type Triode # Vp Vg Ip Triode Param 50 0 0.005 100 0 0.0117 100 -4 0.0025 150 -8 0.0016 150 -2 0.0130 200 -10 0.0027 200 -6 0.0095 250 -16 0.0010 250 -12 0.0045 250 -8 0.0115 300 -18 0.0017 |
ECC82 Spice code* * ECC82 code from Philips 1953 generated by kurvmatch * .SUBCKT ECC82 1 2 3 XZ1 1 2 3 Triode CCG=1.8P CGP=1.6P CCP=0.5P MU=20 EX=1.18 KG1=580 KP=93 KVB=0 RGI=2000 .ENDS |
