Tube data info for 6J6

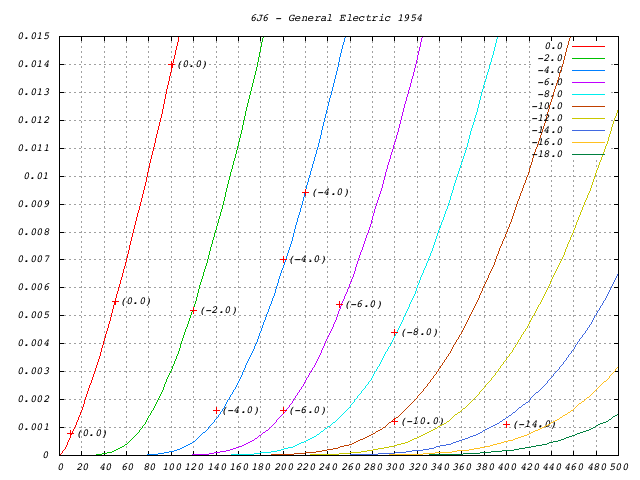

Va/Ia-curve for 6J6 generated by kurvmatch, displayed by gnuplot.

6J6

This is the description file for 6J6.

#	$Id: 6J6.data,v 1.2 2014/01/02 00:45:48 ragge Exp $
#
name	"6J6"
# alias ECC91
Descr	"General Electric 1954"
MU	38
VCT	0	# Contact potential (if known)
#
# These are for SPICE code.
CCG	2.2	# Cathode-grid
CCP	.4	# Cathode-plate
CGP	1.6	# Grid-plate
RGI	2000	# Resistance for grid current (estimate)
#
# Scaling for gnuplot output
Plotx	0	20	500	# Plate 0-500V 20V incr
Ploty	0	.001	.015	# Plate 0-15mA 1mA incr
Plotg	0	-2	-18	# Grid 0-(-18)V -2V incr
#
# Tube definition
Type	Triode
# Vp 	Vg	Ip
Triode Param
10	0	0.0008
50	0	0.0055
100	0	0.014
200	-4	0.007
250	-6	0.0054
120	-2	0.0052
220	-4	0.0094
140	-4	0.0016
200	-6	0.0016
300	-8	0.0044
300	-10	0.0012
400	-14	0.0011

6J6 Spice code

*
* 6J6 code from General Electric 1954 generated by kurvmatch
*
.SUBCKT 6J6 1 2 3
XZ1 1 2 3 Triode CCG=2.2P CGP=1.6P CCP=0.4P MU=41 EX=1.32 KG1=237 KP=161 KVB=1564 RGI=2000
.ENDS
